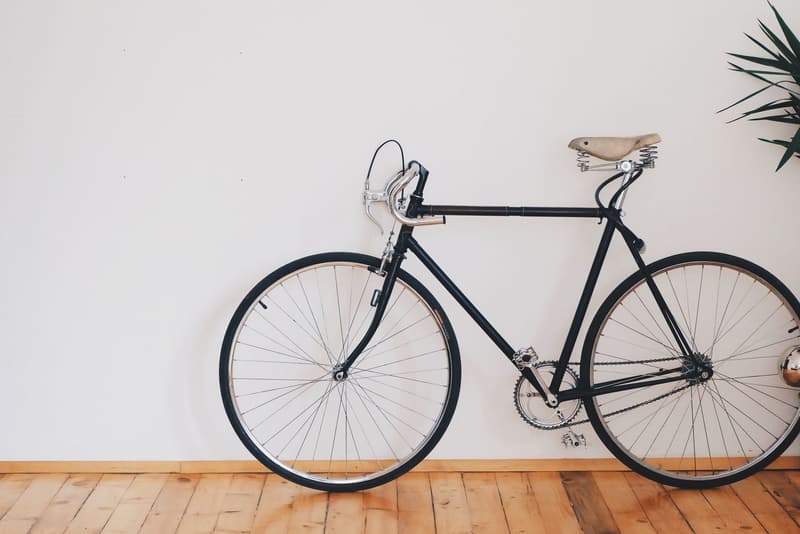

How to read a bike geometry chart

Geometry charts look like the most objective part of a bike listing, which is exactly why they mislead people. A table of millimetres and degrees feels like it should settle an argument, but the numbers only describe shape. How a bike feels comes from how those numbers combine, and from where your body sits inside them.

This guide translates the main figures into ride behaviour, then shows how to compare two bikes without falling into the trap of matching a single number.

Stack and reach: the two that matter most

Stack is the vertical distance from the bottom bracket to the top of the head tube. Reach is the horizontal distance between the same two points. Together they describe the position of your hands relative to your feet, independently of stem length, spacer stacks or seatpost setback.

That independence is the point. Frame sizes labelled 54 differ between brands, but stack and reach are measured the same way everywhere. If you know the stack and reach of a bike that fits you, you can shortlist bikes across brands in minutes.

• More stack, less reach — upright, comfortable, easier on the lower back. Typical of endurance and gravel bikes.
• Less stack, more reach — lower and longer, aerodynamically better, harder to hold for hours. Typical of race bikes.
• Stack-to-reach ratio — a quick way to read intent. Around 1.4 is racy; approaching 1.6 is distinctly upright.

Head angle and trail: how the steering feels

Head angle is the tilt of the fork's steering axis. Slacker angles — smaller numbers — make steering calmer at speed and lazier at walking pace. Steeper angles do the opposite. But head angle alone tells you little, because fork offset also shapes the outcome.

The figure that actually predicts steering feel is trail: the distance between where the steering axis meets the ground and where the tire contacts it. More trail means more self-centring and more stability; less trail means quicker, twitchier response. Two bikes can share a head angle and steer completely differently because their forks have different offsets.

Wheelbase, chainstays and bottom bracket drop

Wheelbase is the distance between the axles, and it is the simplest predictor of straight-line calm. Long wheelbase, stable; short wheelbase, agile. Chainstay length splits that behaviour front to rear: short stays make the back end feel lively and eager to change direction, longer stays add stability and room for wide tires and mudguards.

Bottom bracket drop measures how far the bottom bracket sits below the wheel axles. A lower bottom bracket lowers your centre of mass, which makes cornering feel planted, at the cost of pedal clearance over roots and rocks. This is one reason mountain bikes and road bikes read so differently on paper.

Number	Increase it and…	Typical use
Stack	Position gets more upright	Endurance, gravel, touring
Reach	Position stretches out and lowers	Racing, time trial
Trail	Steering calms down and self-centres	Loaded touring, off-road
Wheelbase	Straight-line stability improves	Gravel, trekking, cargo
Chainstay length	Rear end gets steadier, tire clearance grows	Gravel, trekking
Bottom bracket drop	Cornering feels lower and planted	Road, gravel on smooth ground

Seat tube angle and where your weight lands

Seat tube angle influences how far behind the bottom bracket your saddle sits. A steeper angle puts you further forward, which suits climbing and matches longer-reach frames. A slacker angle moves you back, which many riders find more comfortable on long flat rides. Because saddle rails and seatpost setback also adjust this, seat tube angle is worth reading but is rarely a reason to reject a frame.

Where mountain bike geometry diverges

Off-road geometry has changed more in the last decade than road geometry has in three, and the numbers that matter shift with it. Two figures dominate.

Reach and the short stem. Modern trail bikes are long in reach and paired with a short stem, typically 35 to 50 mm. The long front centre keeps the front wheel ahead of you on steep ground, while the short stem keeps steering quick. Comparing a current trail bike's reach with a road bike's is meaningless; the two numbers describe different systems.

Seat tube length and dropper posts. Because dropper seatposts need insertion depth, seat tube length now limits frame choice as much as reach does. Many riders size up in reach and rely on the dropper for standover, which was not possible on older frames.

Head angles have also slackened considerably, which improves descending confidence and costs low-speed agility. For the sandy, rooty, low-gradient terrain around Berlin, the very slack numbers marketed for alpine descending are usually the wrong trade — our post on trails near Berlin covers what suits the local ground.

How to compare two bikes properly

The common mistake is picking one number and treating it as a verdict. A more reliable process:

1. Start from a bike you have ridden and liked. Write down its stack, reach and wheelbase.
2. Compare candidate bikes to those figures rather than to each other in isolation.
3. Treat differences under about 5 mm in stack or reach as noise — a spacer or a stem covers them.
4. Look at trail rather than head angle if steering feel matters to you.
5. Check tire clearance with a mudguard fitted, not just the bare frame number.
6. Confirm on a test ride in the position you will actually use.

Geometry explains why a bike behaves the way it does. It cannot tell you whether you will enjoy it.

What geometry does not capture

Several things that strongly affect ride feel never appear in the chart. Tire volume and pressure change comfort more than any frame tube. Frame material and layup determine how vibration reaches you. Wheel stiffness, saddle shape and bar width all shift the experience. And fit — the position you can genuinely hold for three hours — outranks all of it.

Use the chart to shortlist and to avoid obvious mistakes, such as buying a frame whose reach is 20 mm longer than anything you have ridden comfortably. Then let the test ride decide. If you are still choosing between categories rather than sizes, our bike types guide is the better starting point, and the road versus gravel comparison works through one common decision in detail.

A practical worked example

Say your current bike has a 570 mm stack and 385 mm reach, and you find the position slightly too low on long rides. You do not need a different category; you need roughly 15 to 20 mm more stack at a similar reach. That points you toward endurance or gravel frames in the same nominal size, or toward the next size up in a race frame with a shorter stem. Framed that way, the chart becomes a filter instead of a debate.
